SMP-10SE S/S SUPERMILL FOR EMULSION
WITH NEW IMPROVED SHEAR PLATE DESIGN
DALWORTH MACHINE PRODUCTS
KNOWN AROUND THE WORLD FOR SUPERIOR COLLOID MILLS
GREAT PRODUCTS COME FROM GREAT MILLS!!!
When making QUALITY asphalt emulsion,
IT TAKES A SUPERMILL TO MAKE A GREAT PRODUCT !!!
OUR MILLS MAKE A GREAT PRODUCT, LOWER COST OF MATERIALS and MEET SPECS!

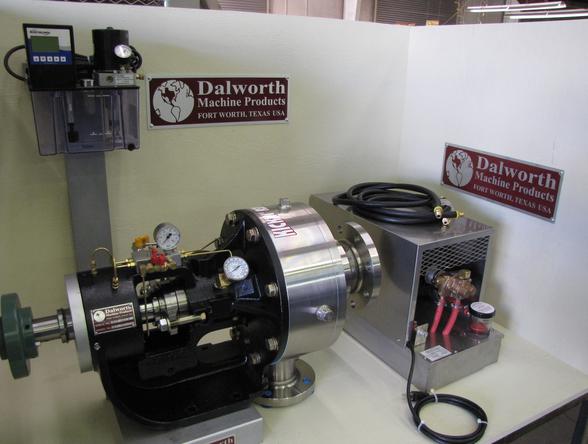

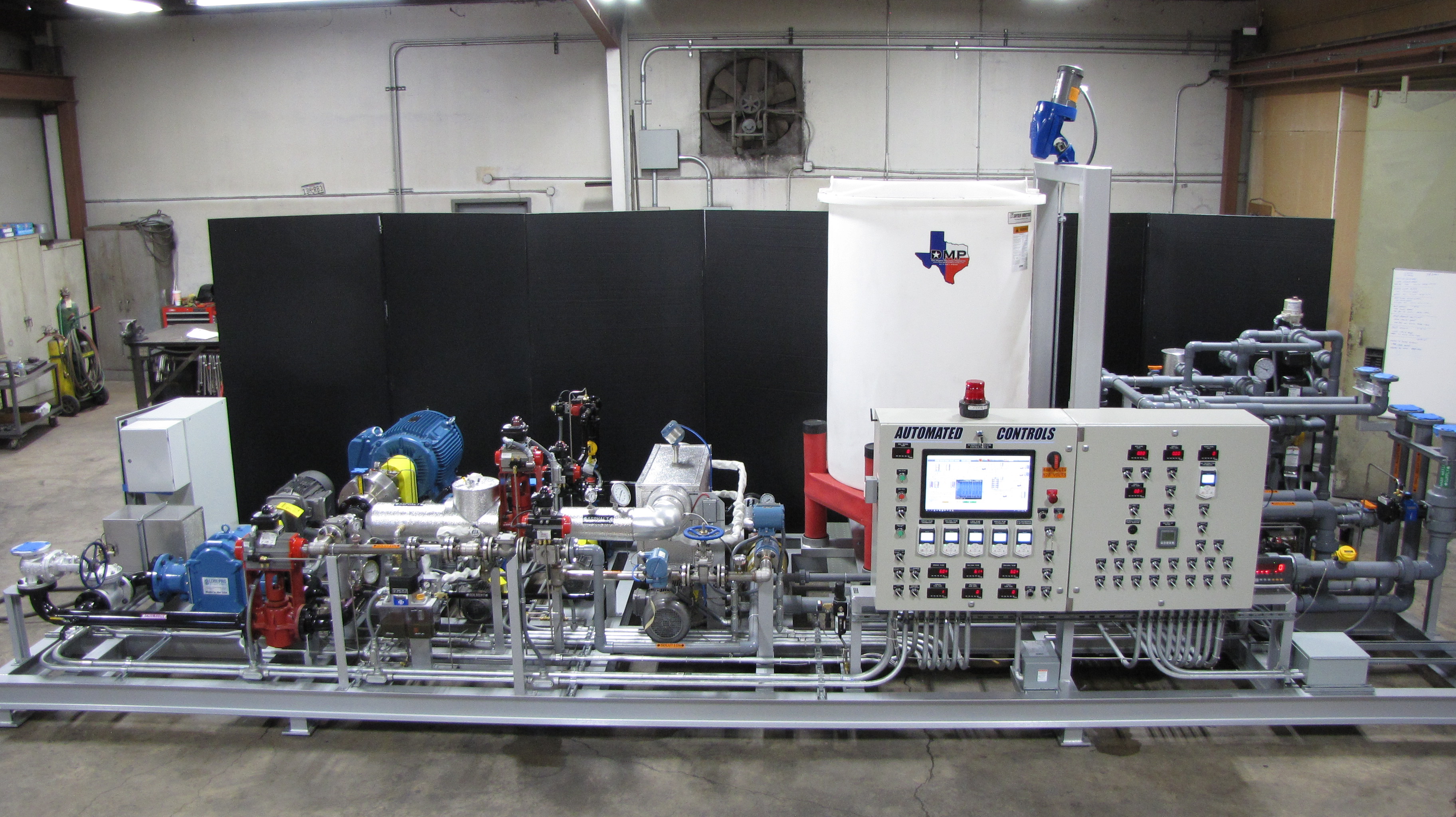

We offer FULLY AUTOMATED EMULSION SYSTEMS that save your that save your formulation's into recipes. It will no longer matter who makes your emulsion, it will always be the highest quality. The operator will hit START , the system will automatically make the batch of soap including checking and adjusting the pH and the final temperature. Once the soap is ready, the same system will start running your batch of emulsion from this same recipe. If your first soap tank volume is too small for the total batch, our system automatically start mixing a second batch of soap in a second soap tank while it runs from the first tank and automatically switch when needed. If required, this continuous system will mix soap until the total needed for your emulsion batch is supplied. Once the emulsion batch total is reached, the system automatically rinses out and shuts down the system in the proper sequence.
This system automatically knows to rinse before switching from Anionic to Cationic. It can also automatically select the finish and supply tanks based on your recipe to be prevent cross contamination. It can store over 50 different product recipes and reduce or increase the total batch size by any percentage with a touch of a button for smaller batches.
If you have any questions regarding our mills or would like more information, please contact us:
SNU-8SE-M/O S/S SUPERMILL® FOR EMULSION WITH NEW IMPROVED SHEAR PLATE DESIGN

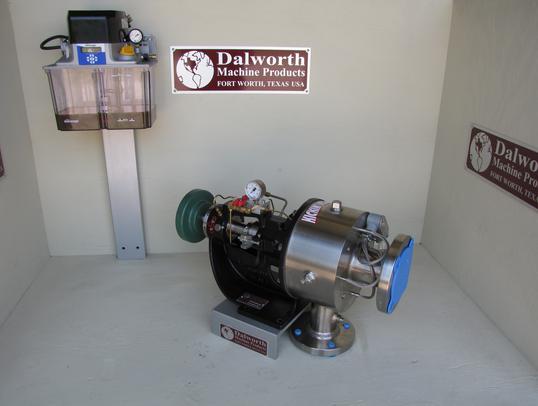

SNU-4SE-M/O S/S SUPERMILL® FOR EMULSION WITH NEW IMPROVED SHEAR PLATE DESIGN

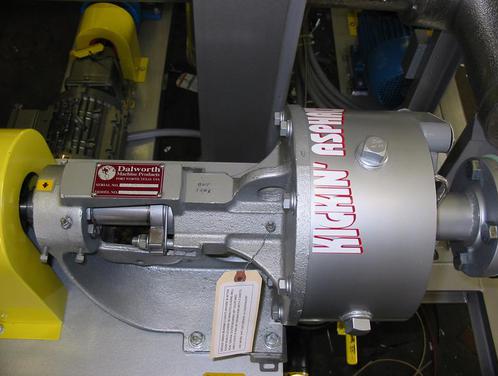

NU-3SE EMULSION MILL
DALWORTH SUPERMILL®
Known for GREAT MILLS with GREAT CUSTOMER SERVICE
CONTACT US FOR MORE OPTIONS AVAILABLE FOR THIS MODEL >
Top Selling Emulsion Mill Worldwide!!!
•Max. Flow: 14,000 GPH
Max. Flow: 14,000 GPH • Production Range: (35-55 MTPH)
• Shear surfaces per minute: 1.3 million
• Shear Force: 101,736 sfm
•Temperature: 50° to 300°F
Temperature: 50° to 300°F•Lubrication Automatic Oil Injection
Lubrication Automatic Oil Injection•Max. Power: 100 HP
Max. Power: 100 HP•Min. Power : 60 HP
Min. Power : 60 HP•Speed: 3600 rpm
Speed: 3600 rpm•Materials of Construction:
Materials of Construction: oAll shear plates 17-4 Stainless Steel
All shear plates 17-4 Stainless Steel oAll Housing/Piping 304 Stainless Steel
All Housing/Piping 304 Stainless Steel•Supply Connections: 3” x 150 LB RF Flange
Supply Connections: 3” x 150 LB RF Flange•Discharge Connection: 2 ½” x 150 LB RF Flange
Discharge Connection: 2 ½” x 150 LB RF Flange•Bearings:
Bearings: oSKF Precision Cylindrical Roller
SKF Precision Cylindrical Roller oSKF Double Roller Thrust
SKF Double Roller Thrust• Seals:
oGarlock HD Viton
Garlock HD Viton oDual Sealed pressurized Barrier Fluid:
Dual Sealed pressurized Barrier Fluid: w/ Chesterton Mechanical seal - rated to 300PSI
• OPTIONAL FEATURES:
o Sensors for automation controls
o Closed Loop cooling system
o Automatic Mill Control & Protection System w/ touchscreen
Specifications:
•Max. Flow: 28,000 GPH
Max. Flow: 28,000 GPH • Production Range: (60-120 MTPH)
• Shear surfaces per minute: 1.3 million
• Shear Force: 113,040 sfm
•Temperature: 50° to 300°F
Temperature: 50° to 300°F•Lubrication: ISO 150 Oil
Lubrication: ISO 150 Oil•Max. Power: 200 HP
Max. Power: 200 HP•Min. Power : 125 HP
Min. Power : 125 HP•Speed: 3600 rpm
Speed: 3600 rpm•Materials of Construction:
Materials of Construction: oAll shear plates 17-4 Stainless Steel
All shear plates 17-4 Stainless Steel oAll Housing/Piping 304 Stainless Steel
All Housing/Piping 304 Stainless Steel•Supply Connections: 4” x 150 LB RF Flange
Supply Connections: 4” x 150 LB RF Flange•Discharge Connection: 3” x 150 LB RF Flange
Discharge Connection: 3” x 150 LB RF Flange•Bearings:
Bearings: oSKF Precision Cylindrical Roller
SKF Precision Cylindrical Roller oSKF Double Roller Thrust
SKF Double Roller Thrust• Seal System:
oGarlock HD Viton
Garlock HD Viton o Dual Sealed pressurized Barrier Fluid w/ Chesterton Mechanical seal rated to 300PSI
Dual Sealed pressurized Barrier Fluid w/ Chesterton Mechanical seal rated to 300PSI • Closed Loop cooling system
• Lubrication: Automated / Self Regulating Oil Injection System with adjustable flow rates & cycle time
• OPTIONAL FEATURES:
o Sensors for automation controls
o Automated Mill Control System w/ Touchscreen

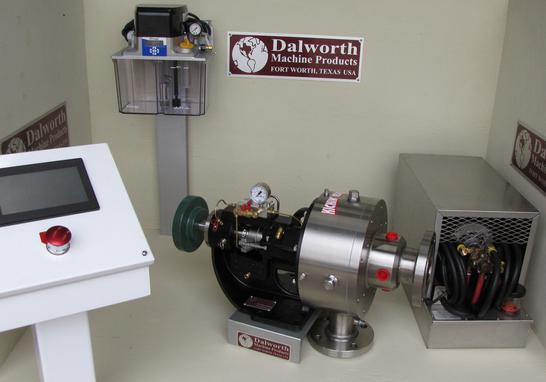

SNU-8SE-M/O-S/S SHOWN w/ Optional Inner Bearing Cooler & Mill Control System
•Max. Flow: 9000 GPH
Max. Flow: 9000 GPH • Production Range: (15-35 MTPH)
• Shear surfaces per minute: 1.3 million
• Shear Force: 90,432 sfm
•Temperature: 50° to 300°F
Temperature: 50° to 300°F• 800 watt x 240v Mill Heat Cartridges
• Mill Heat Thermostat
•Lubrication: Automatic Oil Injection
Lubrication: Automatic Oil Injection•Max. Power: 75 HP
Max. Power: 75 HP•Min. Power : 30 HP
Min. Power : 30 HP•Speed: 3600 rpm
Speed: 3600 rpm•Materials of Construction:
Materials of Construction: oAll shear plates 17-4 Stainless Steel
All shear plates 17-4 Stainless Steel oAll Housing/Piping 304 Stainless Steel
All Housing/Piping 304 Stainless Steel•Supply Connections: 3” x 150 LB RF Flange
Supply Connections: 3” x 150 LB RF Flange•Multidirectional Discharge Connection: 2 ½” x 150 LB RF Flange
Multidirectional Discharge Connection: 2 ½” x 150 LB RF Flange •Bearings:
Bearings: oSKF Precision Cylindrical Roller
SKF Precision Cylindrical Roller oSKF Double Roller Thrust
SKF Double Roller Thrust•Seals:
Seals: oGarlock HD Viton
Garlock HD Viton oDual Sealed pressurized Barrier Fluid w/ Chesterton Mechanical seal rated to 300PSI
Dual Sealed pressurized Barrier Fluid w/ Chesterton Mechanical seal rated to 300PSI• OPTIONAL FEATURES:
o Sensors for automation controls
o Closed Loop cooling system
o Automatic Mill Control & Protection System w/ touchscreen
Specifications:
•Max. Flow: 4,000 GPH
Max. Flow: 4,000 GPH • Production Range: (5-16 MTPH)
• Shear surfaces per minute: .8 million
• Shear Force: 85,254 sfm
•Temperature: 50° to 400°F
Temperature: 50° to 400°F• 800 watt x 240v Mill Heat Cartridges
• Mill Heat Thermostat
•Lubrication: ISO 150 Oil
Lubrication: ISO 150 Oil•Max. Power: 25 HP
Max. Power: 25 HP•Min. Power : 15 HP
Min. Power : 15 HP•Speed: 3600 rpm
Speed: 3600 rpm•Materials of Construction:
Materials of Construction: oAll shear plates 17-4 Stainless Steel
All shear plates 17-4 Stainless Steel oAll Housing/Piping Carbon Steel
All Housing/Piping Carbon Steel•Supply Connections: 2” x 150 LB RF Flange
Supply Connections: 2” x 150 LB RF Flange•Discharge Connection: 1 1/2” x 150 LB RF Flange
Discharge Connection: 1 1/2” x 150 LB RF Flange•Bearings:
Bearings: oSKF Precision Cylindrical Roller
SKF Precision Cylindrical Roller oSKF Double Roller Thrust
SKF Double Roller Thrust•Seals:
Seals: oGarlock HD Viton
Garlock HD Viton oChesterton Graphite Carbon Packing
Chesterton Graphite Carbon Packing• OPTIONAL FEATURES:
o Upgrade to ALL S/S Wetted parts
o Sensors for automation controls
o Closed Loop cooling system
o Automatic oil Lubrication: Automated / Self Regulating w/ adjustable cycle time and Dual Sealed pressurized Barrier Fluid
o Automatic Mill Control & Protection System w/ touchscreen
CONTACT US FOR MORE OPTIONS AVAILABLE FOR THIS MODEL >
CONTACT US FOR MORE OPTIONS AVAILABLE FOR THIS MODEL >
CONTACT US FOR MORE OPTIONS AVAILABLE FOR THIS MODEL >
Specifications:
•Max. Flow: 300 GPH
Max. Flow: 300 GPH • Production Range: (.5 -2 GPM)
• Shear surfaces per minute: 1.1 million
• Shear Force: 67,824 sfm
•Temperature: 50° to 400°F
Temperature: 50° to 400°F• 800 watt x 110 v Mill Heat Cartridges
• Mill Heat Thermostat
•Lubrication: High temp grease
Lubrication: High temp grease•Max. Power: 10 HP
Max. Power: 10 HP•Min. Power : 5 HP
Min. Power : 5 HP•Speed: 3600 rpm
Speed: 3600 rpm•Materials of Construction:
Materials of Construction: oAll shear plates 300 series Stainless Steel
All shear plates 300 series Stainless Steel oAll Housing/Piping Stainless Steel
All Housing/Piping Stainless Steel•Supply Connections: 1”FMPT
Supply Connections: 1”FMPT •Discharge Connection: 3/4” FMPT
Discharge Connection: 3/4” FMPT•Bearings:
Bearings: oSKF Precision Bronze Bushing
SKF Precision Bronze Bushing oSKF Roller Thrust
SKF Roller Thrust•Seals:
Seals: oGarlock HD Viton
Garlock HD Viton oChesterton Graphite Carbon Packing
Chesterton Graphite Carbon Packing• OPTIONAL FEATURES:
o Sensors for automation controls

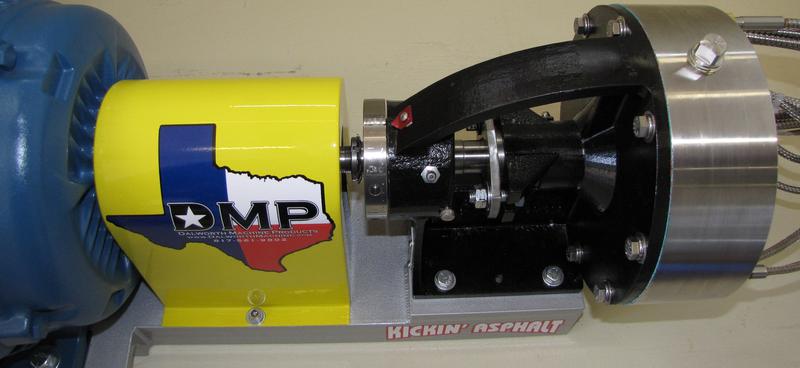

DMP-02S COMBINATION LAB MILL
EZ LOC® GAP ADJUSTER
for Particle Size adjustment IN SECONDS
has been developed for customers that would like to adjust the mill GAP to increase or decrease the particle size quickly & easily. The adjuster consists of a simple spring-loaded locking pin that is pulled out 1/8 of an inch to adjust the mill shear plate gap. The Outer Bearing assembly hub is then free to turn either direction to the desired gap that is marked on the hub with easy to read numbers. At this point the spring-loaded locking pin is released to lock the Outer Bearing Assembly into desired gap. There are no special tools required and adjustment can be made in seconds. The graduations on the hub clearly indicate the gap to eliminate the need for a feeler gauge or a special spanner wrench ever again. It’s EASY AS 1-2-3
“If you would like to order one of our mills with the EZ-LOC™ gap adjuster, please call 817-561-9802."
LATEST NEW FEATURES TO MAKE OUR MILLS GREAT!!!
