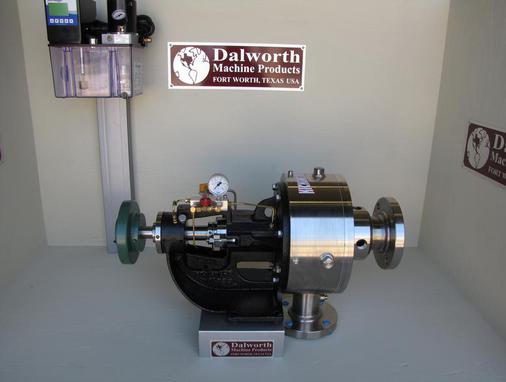

MP-10SC COMBINATION MILL
DALWORTH MACHINE PRODUCTS
KNOWN AROUND THE WORLD FOR SUPERIOR COLLOID MILLS
When working with asphalt,
DALWORTH MILLS MAKE PRODUCING GREAT PRODUCTS EASY !!!
our
COMBINATION MILLS
ARE THE ONLY ONES ON THE MARKET THAT GIVE THE CUSTOMER THE VERSATILITY TO MAKE EMULSIONS OR PMA WITH THE SAME MILL
We take pride in our wide selection of quality colloid mills. All of the mills we offer are made IN THE USA, in our shop and are delivered to you with the added benefit of many years of experience in the asphalt industry to help you work through the difficult process of competing in today's asphalt markets. We make EMULSION MILL in all sizes from 2 GPM to 400 GPM. We make POLYMER MODIFIED ASPHALT BLENDING MILLS to produce from 1 GPM to 250 GPM in a single pass. We also make COMBINATION MILLS that produce both ASPHALT EMULSION and POLYMER MODIFIED ASPHALT.
If you have any questions regarding our mills or would like more information, please contact us:
NU-8SC COMBINATION MILL
NU-4SC COMBINATION MILL
NU-3SC COMBINATION MILL

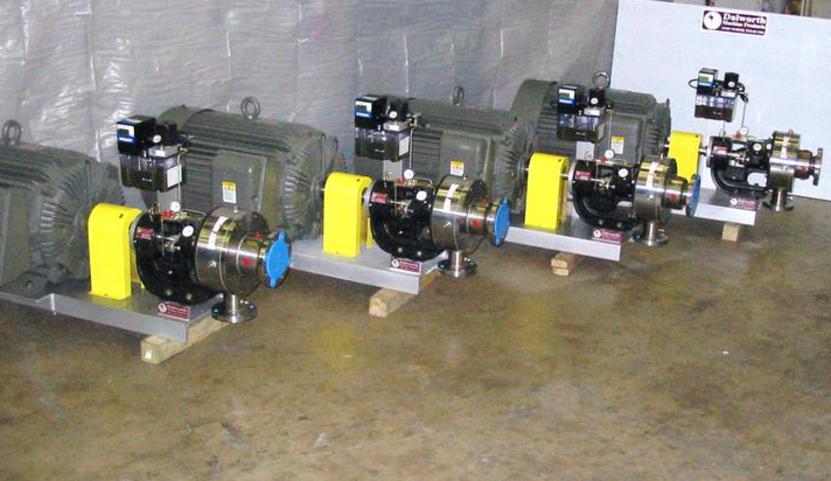

DALWORTH "SUPERMILLS"
Building the GREAT MILLS at a GREAT VALUE is our top priorities.
CONTACT US FOR MORE OPTIONS AVAILABLE FOR THIS MODEL >
TOP SELLER

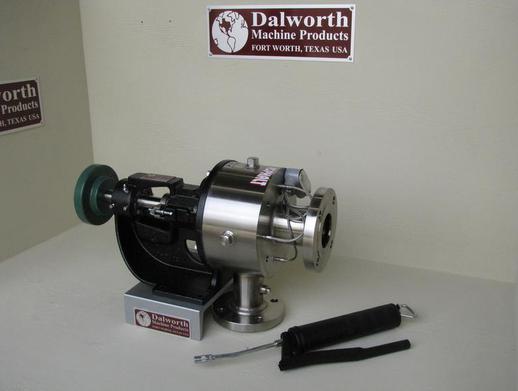

•Max. Flow: 14,000 GPH - EMULSION
Max. Flow: 14,000 GPH - EMULSION 3,500 GPH - PMA
• Production Range: 35-55 MTPH - EMULSIONS
5-15 MTPH - PMA
• Shear surfaces per minute: 1.3 million
• Shear Force: 101,736 sfm
•Temperature: 50° to 400°F
Temperature: 50° to 400°F•Lubrication: Litium Complex Grease
Lubrication: Litium Complex Grease•Max. Power: 100 HP
Max. Power: 100 HP•Min. Power : 60 HP
Min. Power : 60 HP•Speed: 3600 rpm
Speed: 3600 rpm•Materials of Construction:
Materials of Construction: oAll shear plates 17-4 Stainless Steel
All shear plates 17-4 Stainless Steel oAll Housing/Piping 304 Stainless Steel
All Housing/Piping 304 Stainless Steel•Supply Connections: 3” x 150 LB RF Flange
Supply Connections: 3” x 150 LB RF Flange•Discharge Connection: 2 ½” x 150 LB RF Flange
Discharge Connection: 2 ½” x 150 LB RF Flange•Bearings:
Bearings: oSKF Precision Cylindrical Roller
SKF Precision Cylindrical Roller oSKF Double Roller Thrust
SKF Double Roller Thrust• Seals:
oGarlork HD Viton
Garlork HD Viton oChesterton Graphite/ Carbon
Chesterton Graphite/ Carbon • Closed Loop cooling system - included
• OPTIONAL FEATURES:
o Sensors for automation controls
o Duel Sealed pressurized Barrier Fluid:
w/ Chesterton Mechanical seal - rated to 300PSI
o Optional Lubrication: Automated / Self Regulating cycle time
Specifications:

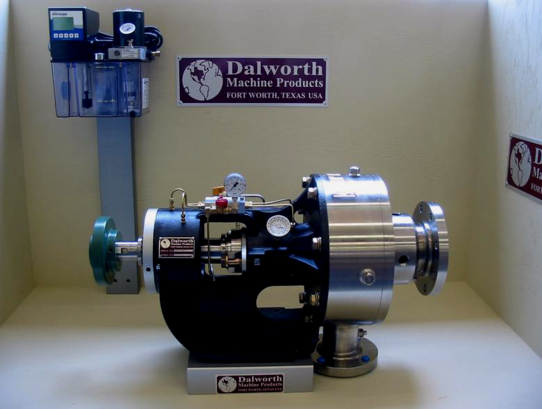

•Max. Flow: 28,000 GPH- EMULSION
Max. Flow: 28,000 GPH- EMULSION 5,000 GPH - PMA
• Production Range: 60-120 MTPH - EMULSION
10- 20 MTPH - PMA
• Shear surfaces per minute: 1.3 million
• Shear Force: 113,040 sfm
•Temperature: 50° to 300°F
Temperature: 50° to 300°F•Lubrication: ISO 150 Oil
Lubrication: ISO 150 Oil•Max. Power: 200 HP
Max. Power: 200 HP•Min. Power : 125 HP
Min. Power : 125 HP•Speed: 3600 rpm
Speed: 3600 rpm•Materials of Construction:
Materials of Construction: oAll shear plates 17-4 Stainless Steel
All shear plates 17-4 Stainless Steel oAll Housing/Piping 304 Stainless Steel
All Housing/Piping 304 Stainless Steel•Supply Connections: 4” x 150 LB RF Flange
Supply Connections: 4” x 150 LB RF Flange•Discharge Connection: 3” x 150 LB RF Flange
Discharge Connection: 3” x 150 LB RF Flange•Bearings:
Bearings: oSKF Precision Cylindrical Roller
SKF Precision Cylindrical Roller oSKF Double Roller Thrust
SKF Double Roller Thrust• Duel Sealed pressurized Barrier Fluid:
oGarlork HD Viton
Garlork HD Viton o Chesterton Mechanical seal - rated to 300PSI
Chesterton Mechanical seal - rated to 300PSI •Lubrication: Automated / Self Regulating Oil Injection System with adjustable flow rates & cycle time
Lubrication: Automated / Self Regulating Oil Injection System with adjustable flow rates & cycle time• OPTIONAL FEATURES:
o Sensors for automation controls
o Closed Loop cooling system
•Max. Flow: 8,500 GPH - EMULSION
Max. Flow: 8,500 GPH - EMULSION 2,500 GPH - PMA
• Production Range: 15-35 MTPH - EMULSIONS
5-10 MTPH - PMA
• Shear surfaces per minute: 1.3 million
• Shear Force: 90,432 sfm
•Temperature: 50° to 300°F
Temperature: 50° to 300°F•Lubrication: Litium Complex Grease
Lubrication: Litium Complex Grease•Max. Power: 75 HP
Max. Power: 75 HP•Min. Power : 30 HP
Min. Power : 30 HP•Speed: 3600 rpm
Speed: 3600 rpm•Materials of Construction:
Materials of Construction: oAll shear plates 17-4 Stainless Steel
All shear plates 17-4 Stainless Steel oAll Housing/Piping 304 Stainless Steel
All Housing/Piping 304 Stainless Steel•Supply Connections: 3” x 150 LB RF Flange
Supply Connections: 3” x 150 LB RF Flange•Discharge Connection: 2 ½” x 150 LB RF Flange
Discharge Connection: 2 ½” x 150 LB RF Flange•Bearings:
Bearings: oSKF Precision Cylindrical Roller
SKF Precision Cylindrical Roller oSKF Double Roller Thrust
SKF Double Roller Thrust•Seals:
Seals: oGarlork HD Viton
Garlork HD Viton oChesterton Graphite Carbon Packing
Chesterton Graphite Carbon Packing• OPTIONAL FEATURES:
o Sensors for automation controls
o Closed Loop cooling system
o Duel Sealed pressurized Barrier Fluid:
w/ Chesterton Mechanical seal - rated to 300PSI
o Optional Lubrication: Automated / Self Regulating cycle time
Specifications:
•Max. Flow: 4,000 GPH - EMULSION
Max. Flow: 4,000 GPH - EMULSION 1,200 GPH - PMA
• Production Range: 5-16 MTPH - EMULSIONS
2-5 MTPH - PMA
• Shear surfaces per minute: .8 million
• Shear Force: 85,254 sfm
•Temperature: 50° to 400°F
Temperature: 50° to 400°F•Lubrication: ISO 150 Oil
Lubrication: ISO 150 Oil•Max. Power: 25 HP
Max. Power: 25 HP•Min. Power : 15 HP
Min. Power : 15 HP•Speed: 3600 rpm
Speed: 3600 rpm•Materials of Construction:
Materials of Construction: oAll shear plates 17-4 Stainless Steel
All shear plates 17-4 Stainless Steel oAll Housing/Piping Carbon Steel
All Housing/Piping Carbon Steel•Supply Connections: 2” x 150 LB RF Flange
Supply Connections: 2” x 150 LB RF Flange•Discharge Connection: 1 1/2” x 150 LB RF Flange
Discharge Connection: 1 1/2” x 150 LB RF Flange•Bearings:
Bearings: oSKF Precision Cylindrical Roller
SKF Precision Cylindrical Roller oSKF Double Roller Thrust
SKF Double Roller Thrust•Seals:
Seals: oGarlork HD Viton
Garlork HD Viton oChesterton Graphite Carbon Packing
Chesterton Graphite Carbon Packing• OPTIONAL FEATURES:
o Sensors for automation controls
o Closed Loop cooling system
o Duel Sealed pressurized Barrier Fluid:
w/ Chesterton Mechanical seal - rated to 300PSI
o Optional Lubrication: Automated / Self Regulating cycle time
CONTACT US FOR MORE OPTIONS AVAILABLE FOR THIS MODEL >
CONTACT US FOR MORE OPTIONS AVAILABLE FOR THIS MODEL >
CONTACT US FOR MORE OPTIONS AVAILABLE FOR THIS MODEL >

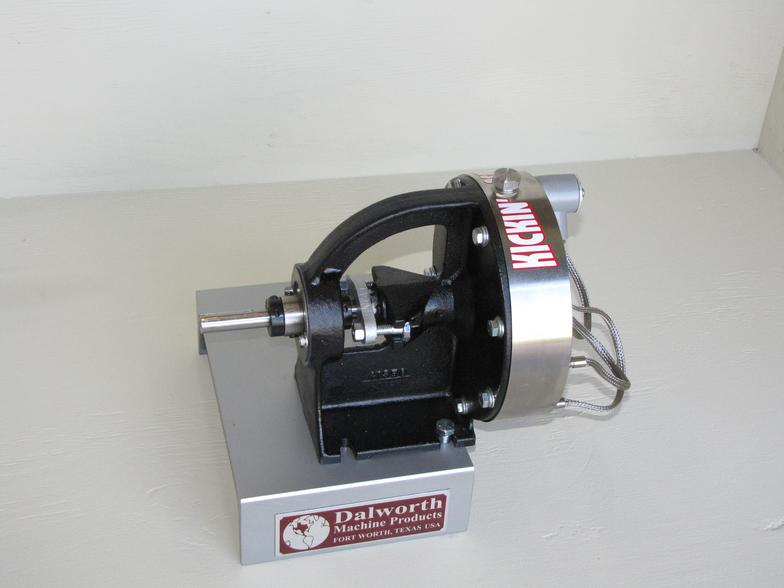

DMP-01S COMBINATION MILL
Specifications:
•Max. Flow: 120 GPH
Max. Flow: 120 GPH • Production Range: (.5 -2 GPM)
• Shear surfaces per minute: 1.1 million
• Shear Force: 67,824 sfm
•Temperature: 50° to 400°F
Temperature: 50° to 400°F• 800 watt x 110/240 v Mill Heat Cartridges
• Mill Heat Thermostat
•Lubrication: High temp grease
Lubrication: High temp grease•Max. Power: 10 HP
Max. Power: 10 HP•Min. Power : 5 HP
Min. Power : 5 HP•Speed: 3600 rpm
Speed: 3600 rpm•Materials of Construction:
Materials of Construction: oAll shear plates 300 series Stainless Steel
All shear plates 300 series Stainless Steel oAll Housing/Piping Stainless Steel
All Housing/Piping Stainless Steel•Supply Connections: 1”FMPT
Supply Connections: 1”FMPT •Discharge Connection: 3/4” FMPT
Discharge Connection: 3/4” FMPT•Bearings:
Bearings: oSKF Precision Bronze Bushing
SKF Precision Bronze Bushing oSKF Roller Thrust
SKF Roller Thrust•Seals:
Seals: oGarlork HD Viton
Garlork HD Viton oChesterton Graphite Carbon Packing
Chesterton Graphite Carbon Packing• OPTIONAL FEATURES:
o Sensors for automation controls
